SYSTEM BEAM


Availability:

Quantity:



Inquire Add to Basket

Product Description

Overview

System Beam is a high-capacity propping system with a safe nominal axial load of about 60 tons.This ultra-versatile modular system,consisting of a wide range of main and auxiliary components,is highly capable of providing a reliable and cost-effective solution for medium to heavy duty propping.The versatility of the system and its components makes it an ideal answer for a broad range of support challenges.

Dimensions

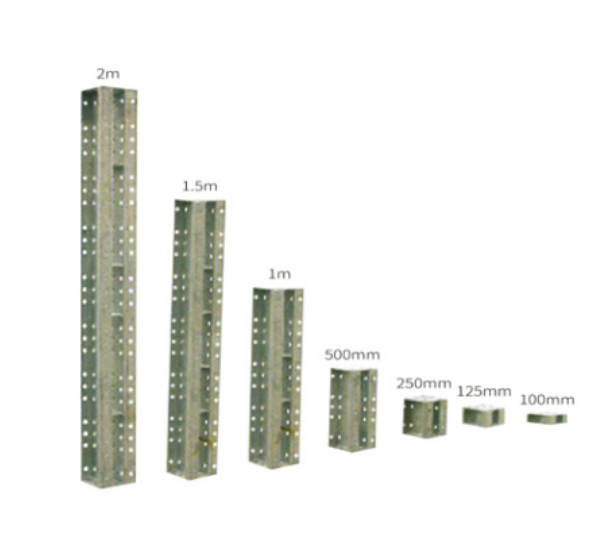

1.System Beam 30

product-aed01

Code	Description		Weight
DSB3001	4.9 in	Beam 125mm	17.6 Ib	8kg
DSB3002	9.8 in	Beam 250mm	24.3Ib	11 kg
DSB3003	19.7in	Beam 500mm	37.5Ib	17 kg
DSB3004	39.4 in	Beam 1000mm	66.1 Ib	30 kg
DSB3005	59.1 in	Beam 1500mm	92.6Ib	42kg
DSB3006	78.7 in	Beam 2000mm	121.3Ib	55 kg

2.System 30 Screw Jack Specification

product-aed02

Code	DSB 3007
Description	Screw Jack
Weight	25kg	55.1 Ib
Adjustment	400-610mm	15.7-24.0in
Base	190×190mm	5.7-7.5in

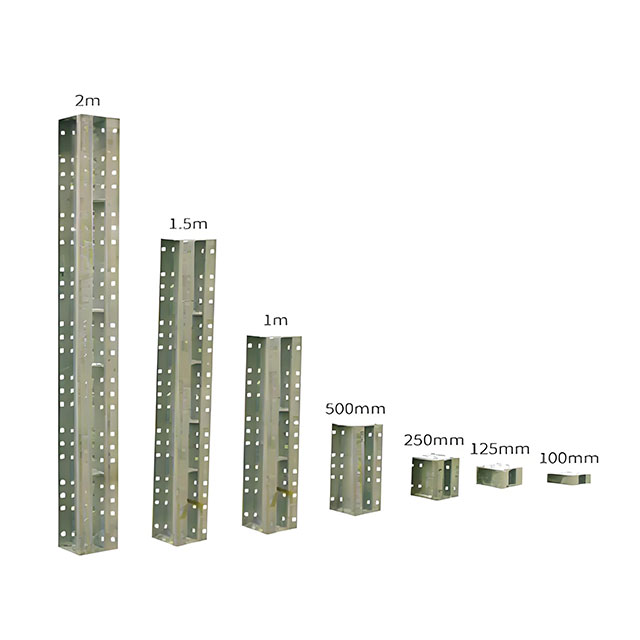

3.System Beam 60

product-aed03

Code	Description		Weight
DSB6001	3.9 in	Beam 100mm	39.7Ib	18 kg
DSB6002	4.9 in	Beam 125mm	41.9Ib	19kg
DSB6003	9.8 in	Beam 250mm	50.7Ib	23 kg
DSB6004	19.7 in	Beam 500mm	72.8Ib	33 kg
DSB6005	39.4 in	Beam 1000mm	119.0 Ib	54kg
DSB6006	59.1 in	Beam 1500mm	167.6 Ib	76 kg
DSB6007	78.7 in	Beam 2000mm	211.6 Ib	96 kg

4.System 60 Screw Jack Specification

product-aed04

Code	DSB 3008
Description	Screw Jack
Weight	32 kg	70.5 Ib
Adjustment	400-610mm	15.7-24.0in
Base	250×250mm	9.8X9.8in

5.Accessories

product-aed05

Code	Description
DSB3008	Raking Bracket
DSB3009	End Connector
DSB3010	Packing Plate
DSB3011	Swivel Scaffold Coupler
DSB3012	Scaffold Wed Coupler
DSB3013	Flange Scaffold Coupler
DSB3014	Transfer Fixing Plate
DSB3015	Truss Fixing Bracket
DSB3016	Needle Beam Fixing Clamp
DSB3017	Sys 30 Bracing
