Overview

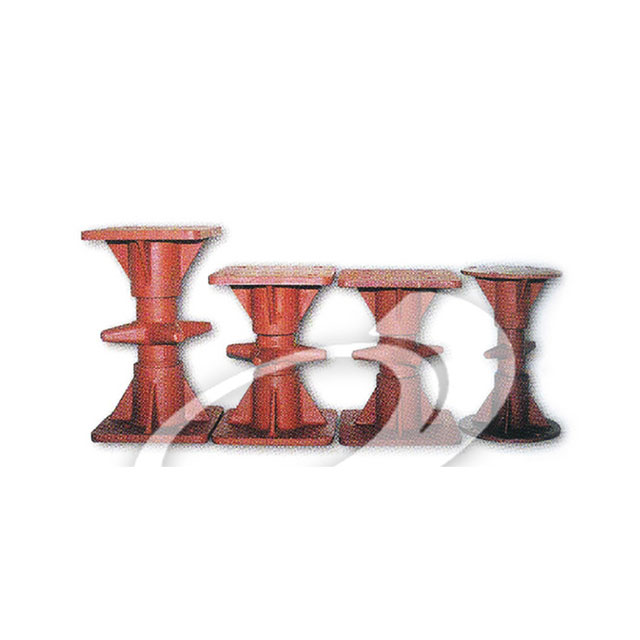

Our heavy duty shoring jack can withstand a load of 100 tons depending on the dimension chosen and is the perfect complement for different configurations of Mega Beam,Waler Beam and System Beam.It can also be tailored to meet customer's needs.
| Code | Max &M | in Height | Allowable Load | Weight | ||
| DSJ30TONA | 380X560mm | 15×22in | 30Ton | 66,139Ib | 15kg | 33.0lb |
| DSJ30TONB | 390X600mm | 15.3X23.6in | 30Ton | 66,139Ib | 27kg | 59.5b |
| DSJ50TON | 380X600mm | 15X23.6in | 50Ton | 110,231b | 40kg | 88.11b |
| DSJ100TON | 410X620mm | 16.1X24.4in | 100Ton | 220,4621b | 67kg | 147.71b |
Load Capacities of Heavy Duty Shoring Jack
Material
| Material | Standard | Elongation | Tensile Strength | Yield Strength |
| FCD 450 | KS D4302 | 17% | 450Mpa | 300Mpa |
