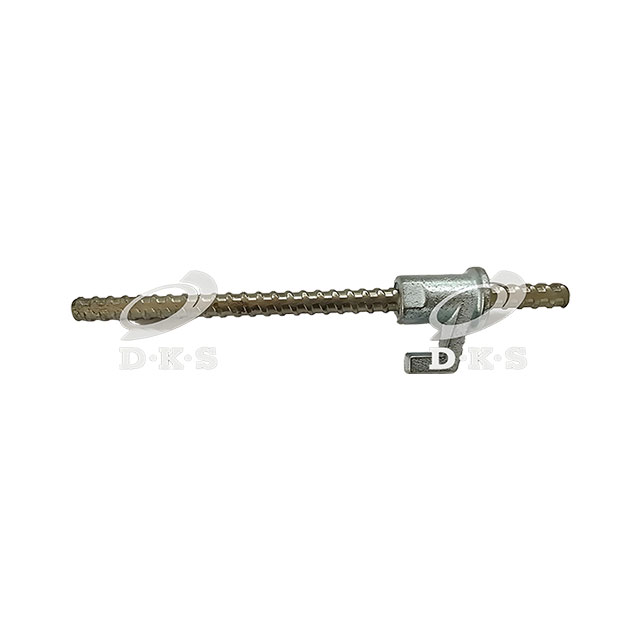

Formwork Tie Rod
Concrete is removed from the rod,when the wing nut is removed from the tie rod.
Specification
| Specification | Max.Load (kgs) | Safety Load |
| BS-84φ 10mm Ball Screw 6 TPI AISI 1045 | 4800 | 2400 |
| BS-84φ 12mm Ball Screw 6 TPI AISI 1045 | 5600 | 2800 |
| BS-84φ 17mm Ball Screw 4 TPI AISI 1045 | 14500 | 7200 |
| BS-84φ 21mm BallScrew 4 TPI AISI 1045 | 23320 | 11600 |
| TR-81 φD Thread P:10mm AISI 1045 | 14500 | 7200 |
