Features Benefits

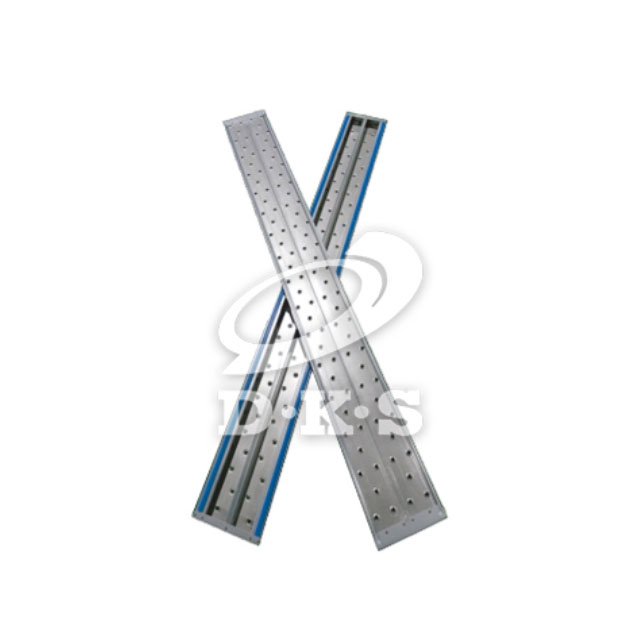

It is a very robust steel plank with an anti-slip surface made of perforated patterns that offers good grip in rainy or snowy conditions.A PVC strip is also fixed on the bottom of the plank to better grip the surfaces on which the plank will be placed.In addition to being light and convenient to use,it is also easy to store.

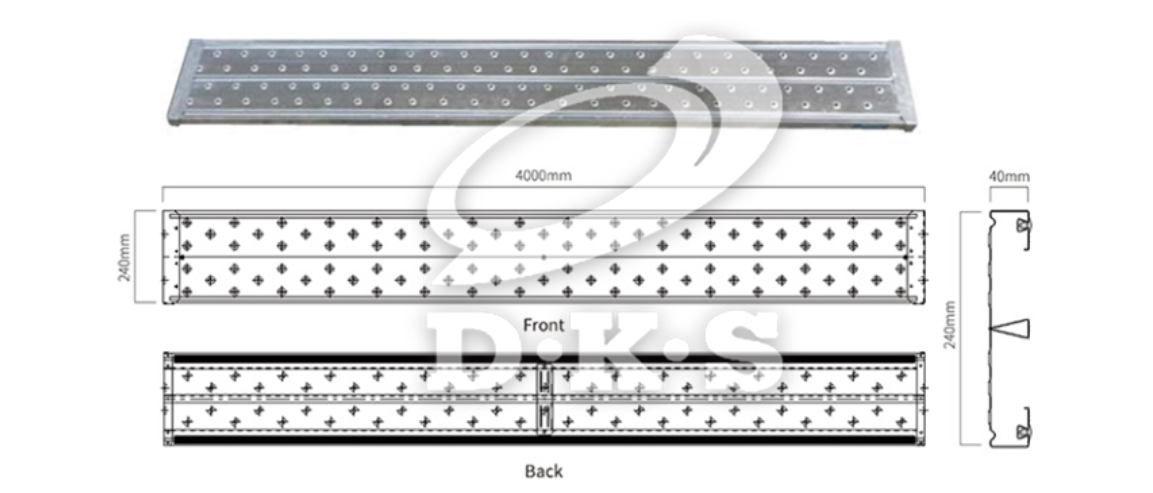

| Code | Description | Weight | ||
| NB200 | 78.7×9.4×1.6in | 2000X240×40mm | 18.7 Ib | 8.5Kg |
| NB300 | 118.1×9.4×1.6in | 3000X240×40mm | 27.8 Ib | 12.6 Kg |
| NB400 | 157.5×9.4x1.6in | 4000×240×40mm | 33.1 Ib | 15Kg |
Test Result
| Sample | Peak Load(kN) | Displacement | Allowable Load | |
| NB200 | 4.39 | 2.12 in | 54.05mm | 1.47KN(150kg) |
| NB400 | 4.32 | 2.07 in | 52.75 mm | |
