Home » Products » SCAFFOLDING SYSTEMS » RING LOCK SCAFFOLDING

Product Category

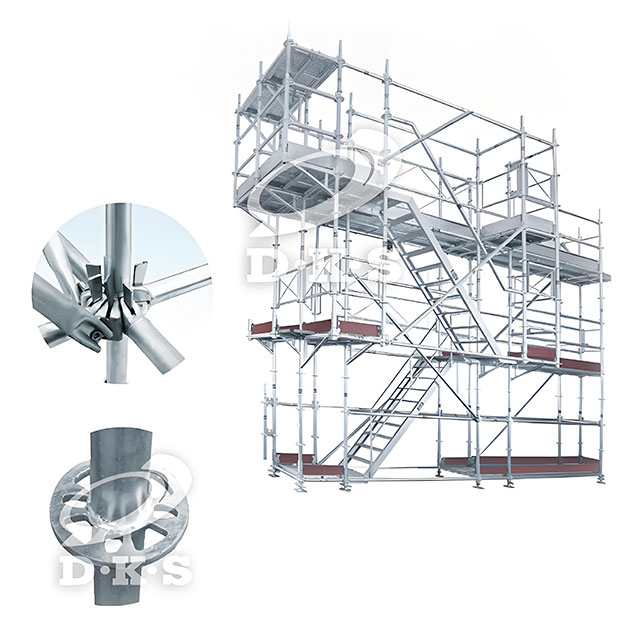

RING LOCK SCAFFOLDING


Availability:

Quantity:



Inquire Add to Basket

Product Description

1.Standard

Code	Description
RFH-B001A	19.7in	500mm
	39.4in	1000mm
	47.2 in	1500mm
	59.1in	2000mm
	78.7in	2000mm
	98.4in	2500mm
	118.1in	3000mm
	157.5in	4000mm
	φ1.9×0.13in	φ48.3x3.25mm
	φ2.1×0.14in	φ60.3x3.5mm

2.Ledger

Code	Description
RFH-B001B	28.8in	732mm
	42.8in	1088mm
	55.1in	1400mm
	61.9in	1572mm
	81.6in	2072mm
	101.3in	2572mm
	120.9in	3072mm
	φ1.9×0.13in	φ48.3x3.25mm

3.Base collar

Code	Description		Weight
RFH-B001A1	11.4in	290mm	4.871b	2.21kg
	13in	330mm	5.071b	2.3kg

4.Base collar

Code	Description		Weight
RFH-B001F	28.8in	732mm	2.76lb	1.25kg
	42.8in	1088mm	4.30lb	1.95kg
	55.1in	1400mm	55.11b	3kg

5.Diagonal

Code	Description
RFH-B001C	55.1x78.7/92.8in	1400x2000/2356mm
	61.9x78.7/96.5in	1572×2000/2451mm
	81.6x78.7/109.1in	2072×2000/2770mm
	101.3x78.7x123.5in	2572×2000/3137mm
	120.9×78.7/139.3in	3072×2000/3537mm
	101.3x59.1x135.2in	2572x1500/3434mm
	81.6x59.1/112.0in	2072x1500/2845mm
	101.3x39.4/103.0in	2572×1000/2616mm
	81.6x39.4/85.1in	2072x1000/2162mm
	φ1.9x0.1in	φ48.3x2.5mm

6.U-Transom

	Code	Description		Weight
	RFH-B001D	28.8in	732mm	7.011b	3.18kg

7.Pin Transom

Code	Description		Weight
DSS-T-3600	28.8in	732mm	7.051b	2kg
	42.8in	1088mm	13.89b	6.3kg
	55.1in	1400mm	18.081b	8.2kg

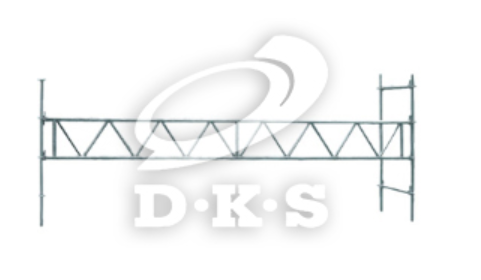

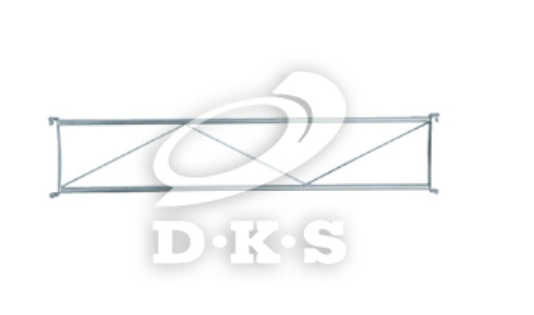

8.Bridging Ledger

Code	Description
RFH-B001G2	61.9in	1572mm
	81.6in	2072mm
	101.3in	2572mm
	120.9in	3072mm

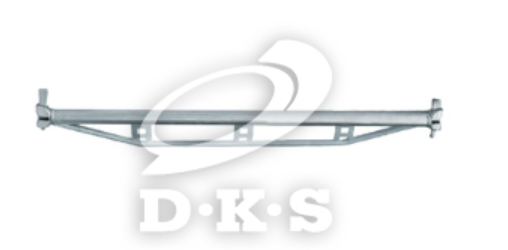

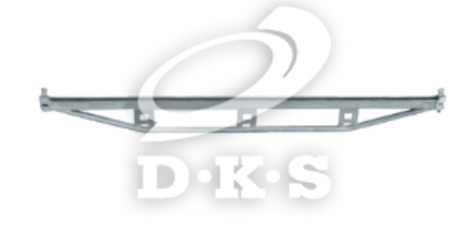

9.Strengthened U Ledger

Code	Description		Weight
RFH-B001G	61.9in	1572mm	21.12Ib	9.58kg
	81.6in	2072mm	28.181b	12.78kg
	101.3in	2572mm	35.49Ib	16.1kg
	120.9in	3072mm	42.551b	19.3kg

10.Strengthened U Ledger

Code	Description		Weight
RFH-B001G	42.8in	1088mm	13.22Ib	6.0kg
	55.1in	1400mm	19.841b	7.9kg

11.Bridging Ledger

Code	Description		Weight
RFH-B001H	15.7in	400mm	6.13Ib	2.78kg
	28.8in	732mm	10.36lb	4.7kg

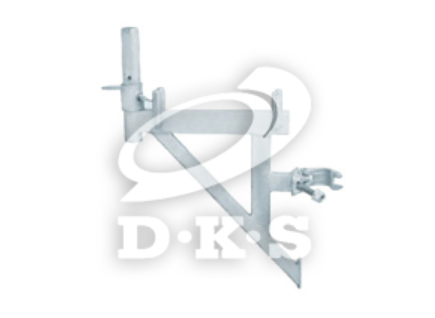

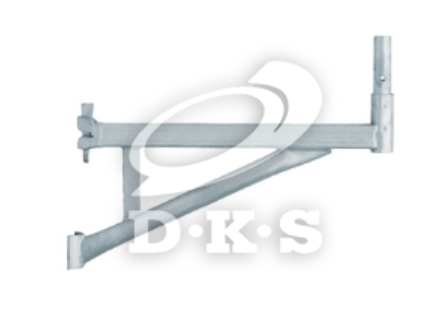

12.Bracket(With Single Coupler)

	Code	Description		Weight
	RFH-B001	23.6 in	SS Compress Jack 600mm	6.6 Ib	3.0 kg

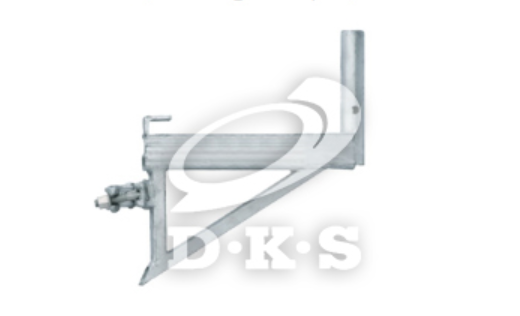

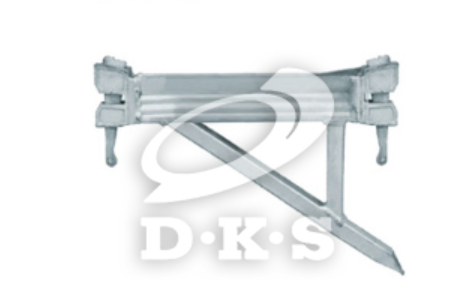

13.Bracket

	Code	Description		Weight
	RFH-B001K	15.7in	400mm	8.82Ib	4kg

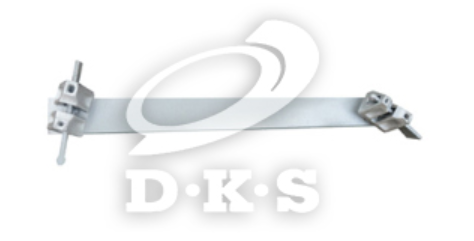

14.Wall Connectors

	Code	Description		Weight
	RFH-B001L	42.83in	1088mm	31.091b	14.1kg

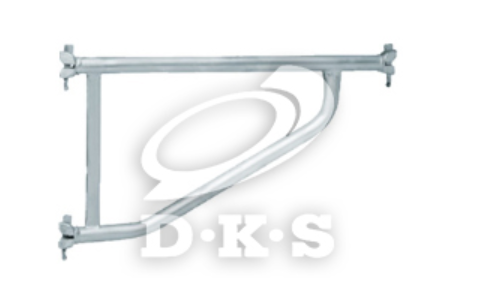

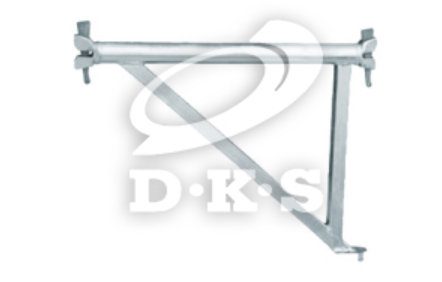

15.Bracket

	Code	Description		Weight
	RFH-B001J	28.8in	732mm	13.73Ib	6.23kg

16.Guard Rail

Code	Description
RFH-B001N	163.15in	4144mm
	202.52in	5144mm
	241.89in	6144mm
	φ1.9×0.13in	φ48.3x3.2mm

17.RFH-B001K(in)

	Code	Description		Weight
	RFH-B001K	28.8in	732mm	12.90Ib	5.85kg

18.Guard Rail

Code	Description		Weight
RFH-B001M	98.42in	2500mm	24.471b	11.1kg
	101.26in	2572mm	26.46lb	12kg
	118.11in	3000mm	31.971b	14.5kg
	120.94in	3072mm	33.071b	15kg

19.Guard Rail

	Code	Description		Weight
	RFH-B001QA	19.69in	500mm	7.50lb	3.40kg

20.Connector

	Code	Description		Weight
	RFH-B001QB	19.69in	500mm	7.50Ib	3.40kg

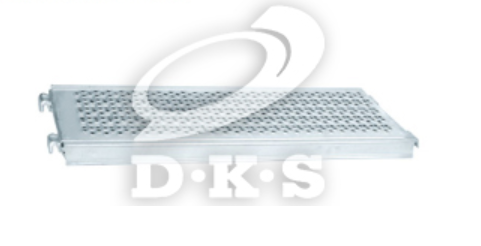

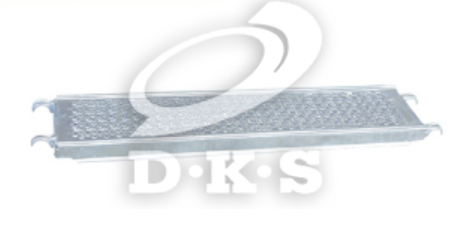

21.Scaffold Plank

Code	Description
RFH-B006E	61.9in	1572mm
	81.6in	2072mm
	101.3in	2572mm
	120.9in	3072mm
	12.6x3x0.06in	320x76x1.5mm

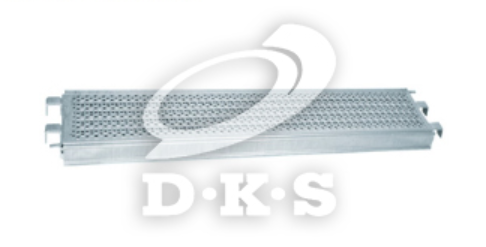

22.Scaffold Plank

Code	Description
RFH-B006F	61.9in	1572mm
	81.6in	2072mm
	101.3in	2572mm
	120.9in	3072mm
	12.6x3×0.06in	320x76x1.5mm

23.Scaffold Plank

Code	Description
RFH-B006L	61.9in	1572mm
	81.6in	2072mm
	101.3in	2572mm
	120.9in	3072mm

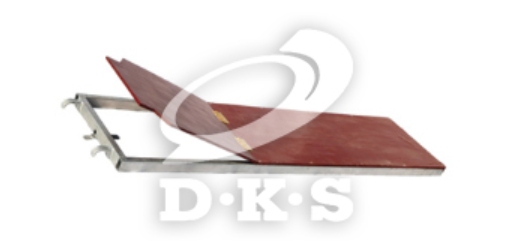

24.Scaffold Plank

Code	Description
RFH-B006H	61.9in	1572mm
	81.6in	2072mm
	101.3in	2572mm
	120.9in	3072mm
	24.02×2.44in	610x62mm

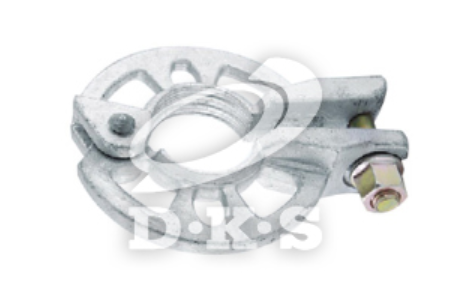

25.Round Ring Clamp

	Code	Description
	RFH-A075	2.6lb	1.20kg

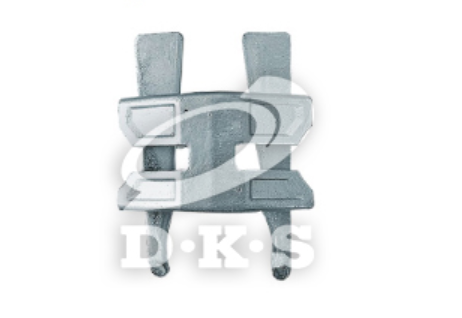

26.Twin Wedge

	Code	Description
	RFH-B012G	2.51b	1.16kg

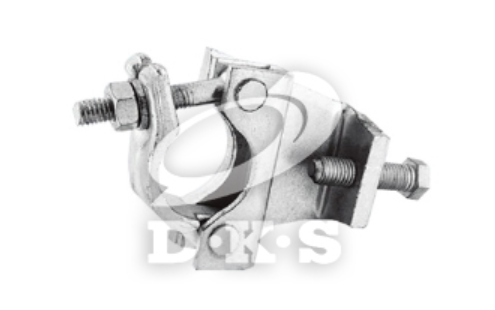

27.Fixed Girder Coupler

	Code	Description		Weight
	RFH-A008	1.9in	48.3mm	3.11b	1.40kg

28.Swivel Girder Coupler

	Code	Description		Weight
	RFH-A007	1.9in	48.3mm	3.31b	1.50kg

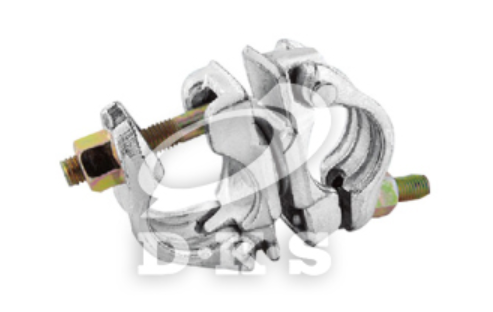

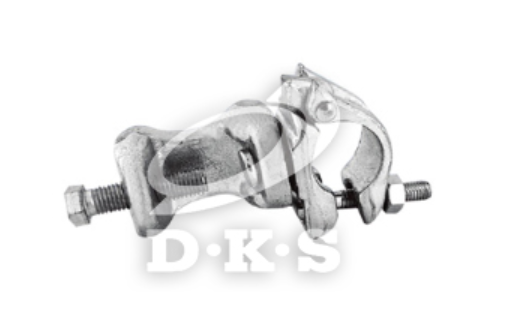

29.German Type Swivel Coupler

	Code	Description		Weight
	RFH-A015	1.9in	48.3mm	3.11b	1.40kg

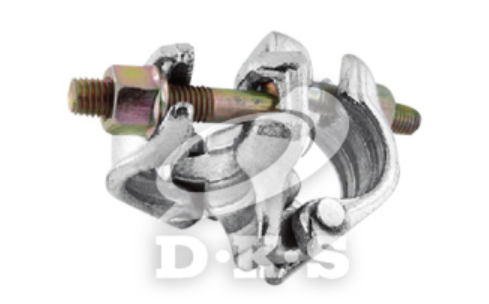

30.German Type Double Coupler

	Code	Description		Weight
	RFH-A016	1.9in	48.3mm	2.61b	1.20kg

Product Description
